基礎信息

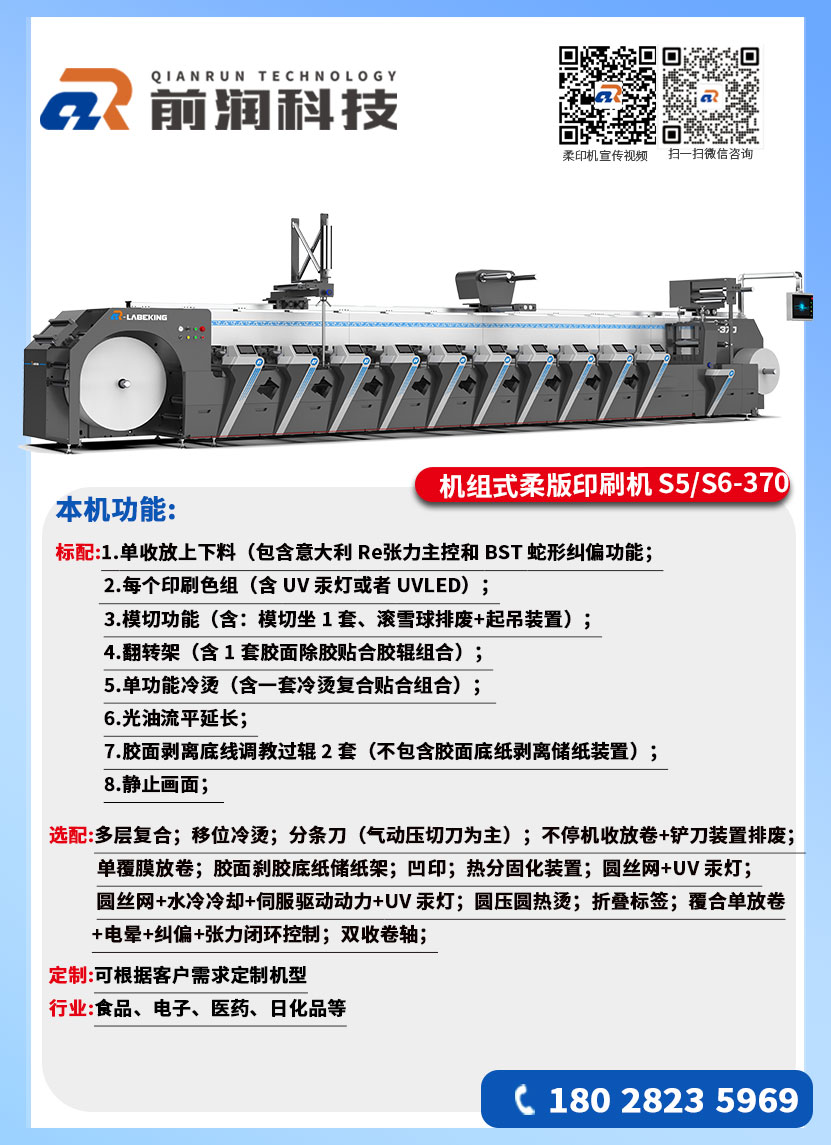

| 前潤S6-370機組式柔版印刷機 | |
| 機型Type | 370/450/550 |
| 色組可選Print color | 2-12Colors |
| 最大印刷寬度Max. print width | 370mm/450mm/550mm |
| 印刷長度范圍Print repeat length | 203.2-635mm |
| 最大走紙寬度Max. mechanical speed | 380mm/460nn/560nn |
| 機械速度Max. mechanical speed | 150m/min |
| 最大放卷直徑Max. unwind dia | ø1000mm |
| 最大收卷直徑Max. rewind dia | ø1000mm |
| 干燥系統Drying system |
可選UV汞燈、LED UV\熱風干燥 Optionai UV mercury lamp,LED UV,Hot air drying |
| 性能Features |
|
1、無軸傳動：獨立雙伺服電機驅動，支持在線自動預套印和追套印，調校簡便；
Shaftless drive: Independent dual servo motor drive, supports online automatic pre-registration and over-registration, easy adjustment；
2、高效印版滾筒：花瓣式結構，換版快捷，無需大幅調節，無墨杠；
Efficient plate cylinder: petal-shaped structure, fast plate change, no need for large adjustments, no ink bar；
3、大尺寸承印輥配有水冷裝置，對無支撐薄膜材料有較好的適應性，適用于印刷多種薄膜材料，如PET、OPP、CPP、PP等；
The large size anvil roller equipped with water chiller, which has good adaptability to unsupported film materials and is suitable for printing a variety of film materials, such as PET, OPP, CPP, PP, etc；
4、智能不停機系統：可選配不停機收放卷系統，支持手動/自動接紙，提高生產效率；全視覺自動套印系統，實現自動套印和數據保存，返單時可一鍵調取，自動套準。
Intelligent non-stop system: optional this system, support manual/automatic paper connection, improve production efficiency; full visual automatic overprinting system, realize automatic overprinting and data storage, and can be retrieved with one button when returning the order, and automatically register.
5、多功能印刷：柔版印刷為主，支持冷燙、覆膜、除膠、多層標簽、折頁標簽、在線品檢、模切等工藝，可選配絲印、噴碼、凹版等聯機功能。
Multifunctional printing: mainly flexographic printing, supporting cold stamping, lamination, Glue removal, multi-layer labels, folding labels, online inspection, die-cutting and other processes, and optional online screen printing, inkjet printing, gravure, etc.
6、便捷收放料：獨立料卷升降機構，自動化控制，減輕勞動強度。
Simple rewinding and unwinding device: independent material roll lifting mechanism, automatic control, reducing labor intensity.
|
